GS1 Barcode Scanning Setup

Created by Datapel Integration, Modified on Fri, 30 May at 5:21 PM by Datapel Integration

Description

This document explains Barcode scanning and detection of EAN to different fields, e.g. Item Number, Batch Serial, Expiry Date.

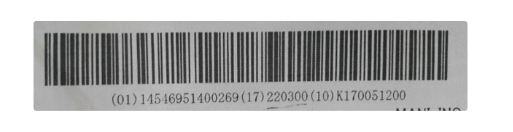

Example of GS1 barcode:

(01) 14546951400269 (17) 220300 (10) K170051200

Setup is done in the EAN128Config.xml file

With the above example, there are three parts to the GS1 barcode:

Each part (bracket) refers to the different Application IDs in EAN128Config.xml

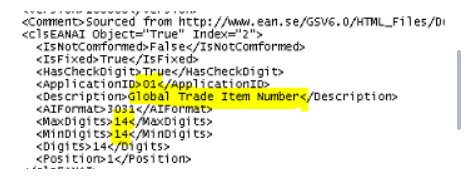

Each part has its min and max digit length (example as below)

Workflow Restrictions

Setup EAN128Config.xml as per customer's barcode specification.
We need to use a barcode scanner to detect and break down the fields (it needs to go through the scanning engine). Cannot manually type in the numbers.

Video Tutorial
https://s3-ap-southeast-1.amazonaws.com/datapelstorage/training/2016-08-31-Support-GS1-Scanning.mp4

GS1 General Specifications
