Scanner setup for Cloud WMS

Created by Datapel Integration, Modified on Fri, 6 Jun at 4:16 PM by Datapel Integration

Description

Scanner setup for Cloud WMS - LS2208

1. Attached is the document of Datapel Cloud Scan Settings

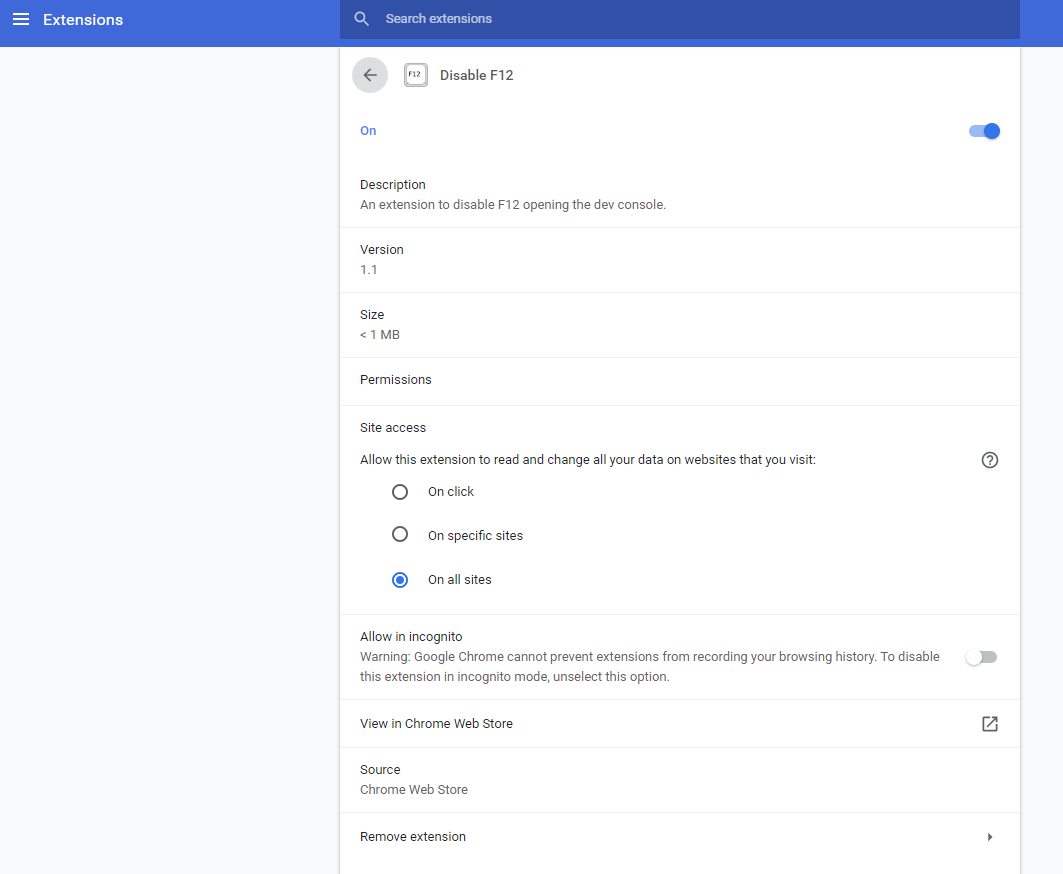

1. For Google Chrome browser, to disable F12 opening the dev console, add the below extension to browser and turn ON.

3. LS2208 - Scan the following:

F12 terminator - F12 Rules Refreshing Scanners - ADF Rules: F12 for Motorola LS4278
DontSendUnknown - refer to the attached pdf document in step 1 section “USB Ignore Unknown Characters.”
ConvertToUPPER - refer to the attached pdf document in step 1 section “Convert Case.”
4. Honeywell or any general scanners- to confirm that F12 has been successfully activated on the scanner, you need to test by scanning a barcode into a Word document (has to be Word, not Notepad) and If the "Save As" window pops up.

Workflow restrictions

If not setup correctly will result in scrambled scan results, and you may be unable to use quick scan functions.

In case of scanner delay in sending barcode:
Print out the attached Datapel Cloud Scan Setting documents and scan the following code:

1. Long Delay (40 msec)
2. Override Caps Lock Key (Enable)
3. Do Not Send Bar Codes with Unknown Characters
4. Enable Convert Unknown to Code 39
5. Convert All to Upper Case
6. *Enable USB Static CDC (1)

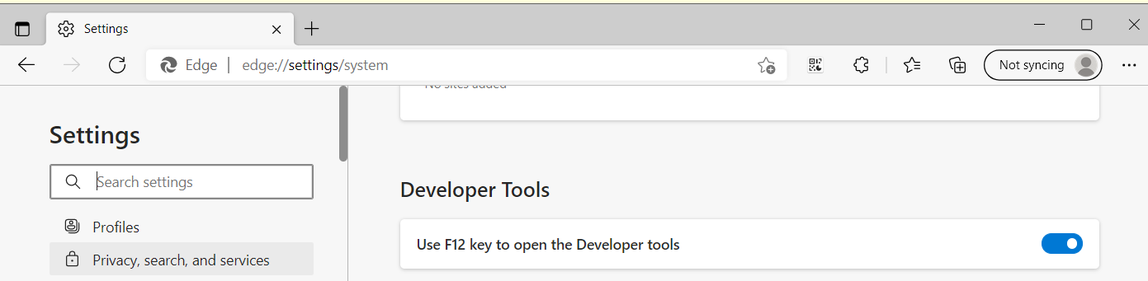

To change the F12 keyboard shortcut setting that opens the DevTools in Ms Edge browser, complete the following actions:
