WMS Preferences - Barcode

Created by Datapel Integration, Modified on Fri, 6 Jun at 4:32 PM by Datapel Integration

Description

The following are advanced preferences and can control the Inventory processes and workflows of WMS.

Workflow Suggestion

Consult a Datapel Systems Representative before making any changes after the initial installation date.

Important Note

You need to log in as a Superuser to make Barcode Preference Changes.

Detail Steps

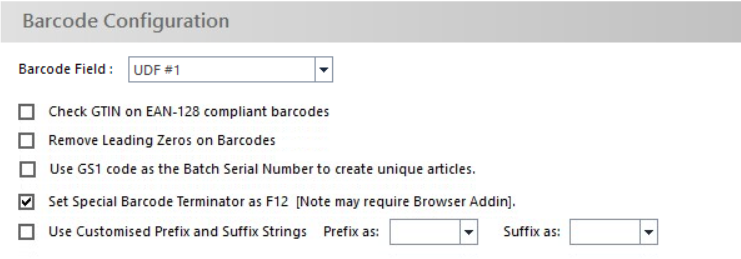

Barcode Field	UDF Field #1, Custom Field #3	Dedicated Custom Field or UDF field number used for Barcodes
Show Details on Item Scan.	On or Off	On = Brings up Item Details Window whenever an item is Scanned
Check GTIN on EAN-128 compliant barcodes.	On or Off	On = Uses and recognizes the GTIN check digit
Always ScanTag EAN-128 barcodes	On or Off	On = Uses ScanTag EAN-128 barcodes
Always use Scan Picking in Despatch	On or Off	On = Required if using QuickScan workflow
Always Track Serial Numbers in Receiving.	On or Off	On = Asks Users to record a serial/batch number when receiving items
Remove Leading Zeros on Barcodes.	On or Off	On = Removes leading Zeros from a barcode e.g., 000900007 would scan as 900007
Attempt Numeric Match on Scanned Batch-Serial#	On or Off	On = match numeric numbers on scanned batch-serial numbers
Use Special Barcode Terminator as [F12].	On or Off	On = Recommended that this preference be On if using scanners. Note: A Scanner needs to be configured to enable the F12 command
Use GS1 as the Batch Serial Number to create unique articles	On or Off	On = Uses GS1 as the serial number

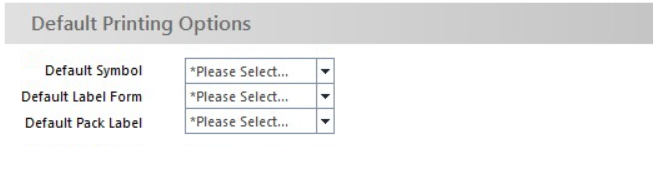

Default Symbol.	Code 39 Extended, Code 128 A, EAN 13, EAN 128	System-Wide Default Barcode Symbolization
Default Label Form:	Avery Sizes 3110, 3261L, 6570, L7168, L7166, L7165, L7173, L7164, L7156, L7157, L7158, L7159, L7651, and any other Custom Label Forms created and save using the Wizard	System-Wide Default Label Form
Default Pack Label:	ItemLabel-Basic, ShipLabel-Basic, ItemLabel-EAN, ItemBatchLabel-Basic, ItemSerialNum-Basic	System-Wide Default Pack Label Format
Use Customized Prefix and Suffix Strings	On or Off Prefix as... or Suffix as ...	On = uses customized prefix or suffix.
