Adding and Removing Product Pictures

Description

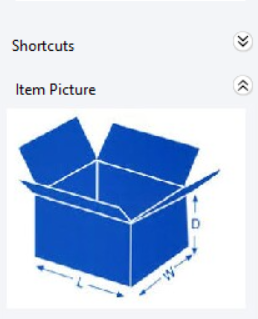

Each Item can show a product picture preview in the WMS item list “Item Picture” section.

Standard Picture size 150 x 140 pixels.

Each User will need to check that the “Preview Item Image Attachment” is turned ON.

Go Options > Preferences > General Tab.

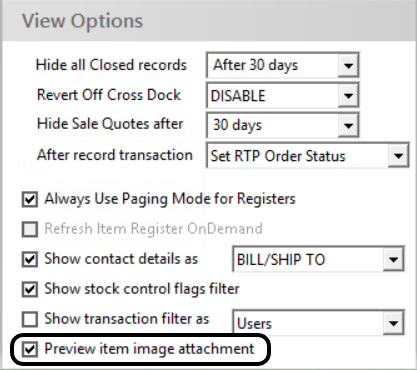

View Options > turn ON “Preview item image attachment” > Record Preferences.

Detail Steps

To add a Picture to an item:

1.Highlight the item in the item list by using a single click on the item line required

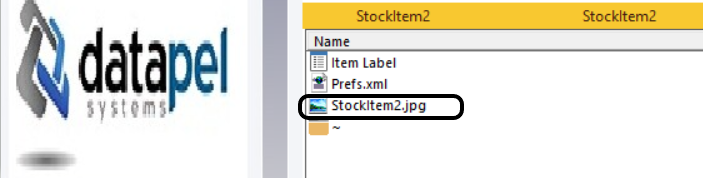

2.Select the Attachments tab at the bottom of the program screen, then right-click on a blank section of the attachments window and select “add…” select the file location, then file a J-Peg (.JPG) or Bitmap (.BMP) and select “Open.”

These Pictures will remain until removed and WMS is closed and reopened.

To remove pictures:

1. Select the file in the attachment detail view window.
2. Right-Click with the mouse, select Remove.
​

To open a Picture using your default picture program:

Double-Click the attachment icon.

Please double-click or right-click to open attachments.
Drag and drop only work on older premise WMS application versions.
