Box Scan Workflow

Created by Datapel Integration, Modified on Fri, 6 Jun at 4:23 PM by Datapel Integration

Description

This document explains the Box Scan Workflow.

There are a number of new barcodes that are recognised listed below.

BOXED

BOX1

BOX2

BOX3 .... BOX9

So far, it has only been designed to work in Quick Despatch - COUNT (scan pack) workflow.

When you start a COUNT (must be picked), the first box #1 is default - all items scanned will get a record in the BXL_BoxList table.

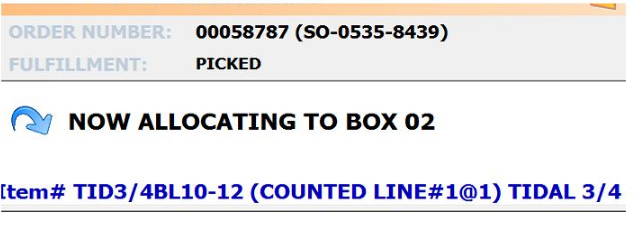

If you scan BOXED or BOX# barcode as above, the Quick Despatch will show the box number being packed so you can force BOX2 - then back to BOX1 etc.

Order 00058787 having 3 item and I’m allocating into 3 boxes:

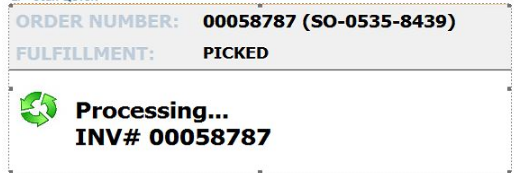

1. Scan QUICK.

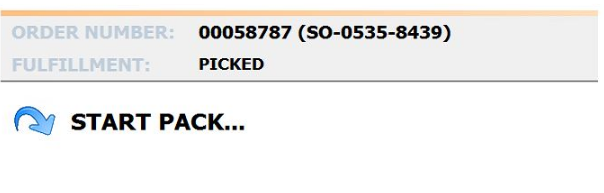

2.Scan COUNT.

3.Scan Item 1.

4. Scan BOXED.

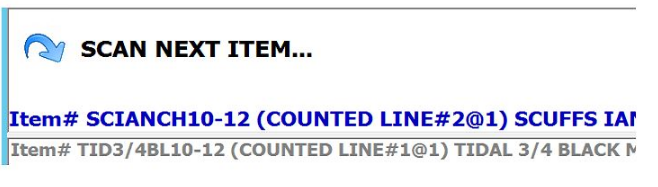

5 . Scan Item 2 (depends how many you want to include here).

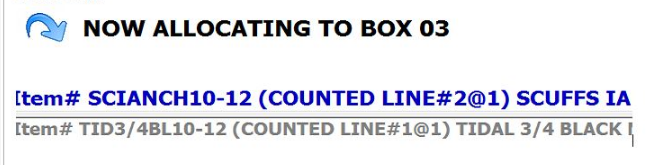

6.Scan BOXED.

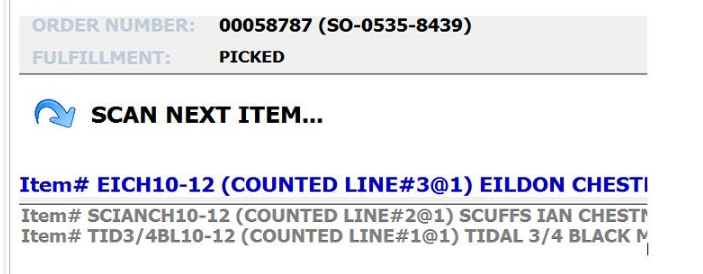

7.Scan next item.

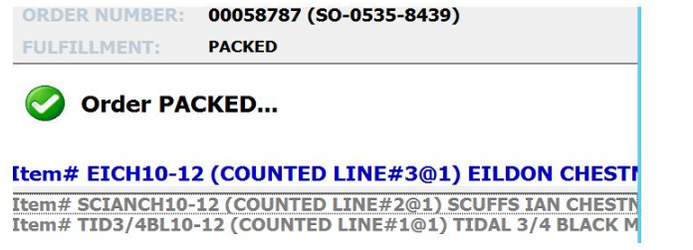

8. Scan BOXED > PACK.

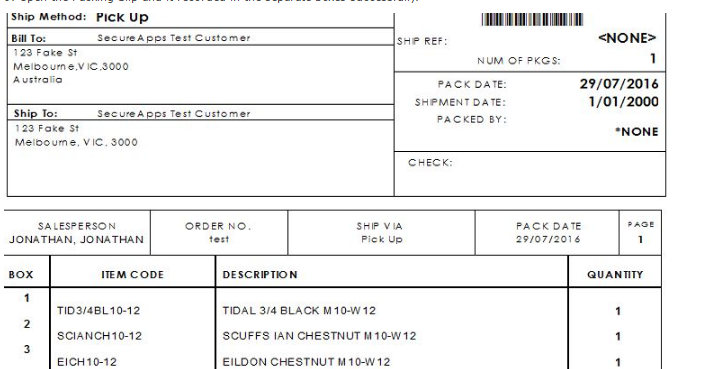

9. Open the Packing Slip and it recorded in the separate boxes successfully.

You will need to update the PACKORDER form to show the related box# to item codes.
