Cipherlab - unable to scan 2 and 3 character barcodes

Created by Datapel Integration, Modified on Fri, 6 Jun at 4:16 PM by Datapel Integration

Description

This article explains how to resolve issue when mobility scanner unable to scan 2 and 3 character barcodes.

Example barcode - A1 or A01 (2 characters, or 3 characters) - won't scan, no error, no beep, nothing happens

But other barcodes, can scan properly. PDF attached under Related Information.

Current minimum length is 4 characters.

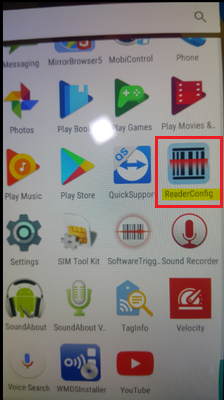

Please change the setting in scanner (android) "ReaderConfig" and test again.

Setting as below:

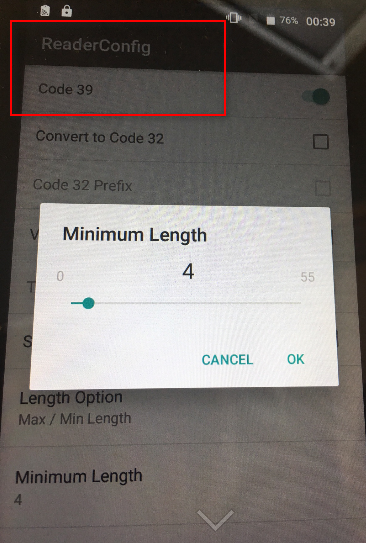

ReaderConfig > 1D Symbologies > Code 39 Detail > Minimum Length

Note: Screen-shot is from scanner model Cipherlab RS50

Attaching docs. "NONWORKING.pdf" is sample barcodes.

PDF
