Connection to Datapel has been terminated

Description

This document explains how to check and fix errors when a scanner connects and then terminates.

Detail Steps

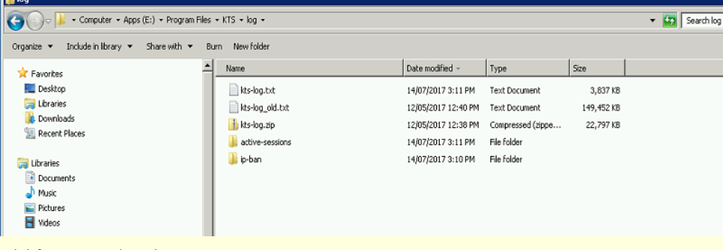

1. Check the KTS log folder.

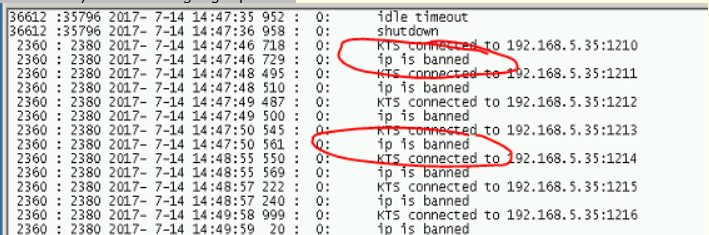

2. Check for any errors during login process - ip is banned.
   ​










   ​

3. Note internal IP BAN.

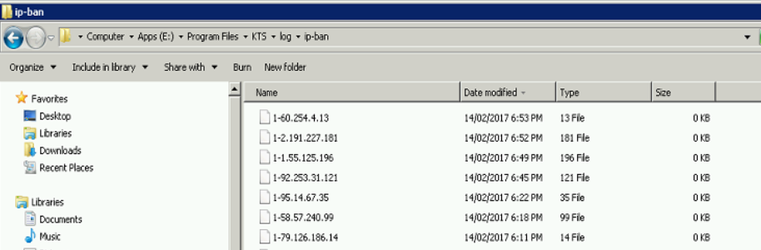

   To clear - goto IP-BAN folder and remove IP Address file.

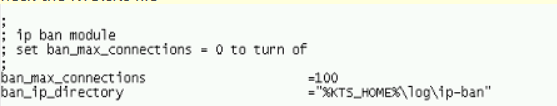

4. Check the KTS.INI file.









5. Consider IP = 0 or increase the connection count to reduce the chance of IP BANS. Default is 10 - here it was increased to 100.
